Description

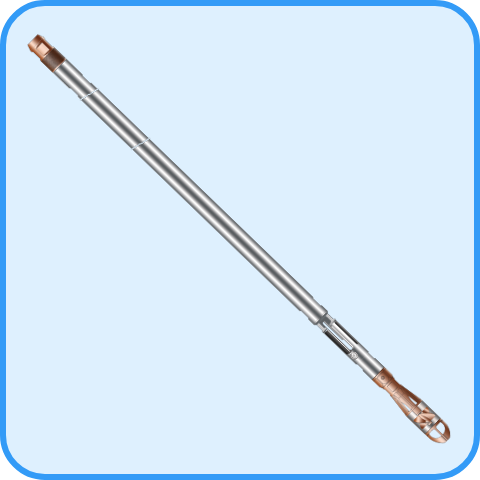

Geothermal Fast Tool
The Geothermal Fast Telemetry (GFT) is a high temperature logging tool that will allow you to work continuously for up to 4 hours at 350ºC or up to 6 hours at 300ºC. This unit measures and records: wellbore temperature, pressure, flow, gamma ray, and collar locator using a high end electronic system protected by a flask housing. Different sizes of flowmeters are available based on your wellbore design. GFT runs on Warrior System (SDS), and on Memory mode.
Specifications
| Telemetry Specifications | |
| tool head voltage | 150 VDC – 400 VDC |
| tool bus voltage | 48 VDC |
| outside diameter | 1-3/4″ |
|
uplink data rate |
80, 180, and 300kbits/sec |
|
Temperature |
|
|
range |
350ºC up to 4 hrs or 300ºC up to 6 hrs |
|
accuracy |
±0.25 |
|
resolution |
0.0003ºC |
|
response |
0.5 seconds aprox. |
|
Gamma Ray |
|
|
type |
scintillation type |
| sensitivity |
2 counts per API |
| Collar Locator (CCL) |
|
| Pressure |
|
| range | 5,000 / 10,000 / 15,000 |
| accuracy | 0.03% F.S. |
| resolution | 0.0003 psi |
|
transducer type |
piezoresistive |
|
Flowmeter |
|
|
outside diameters |
1-11/16”, 2-1/8”, 3” |
| sensor type | reed switch/magnetic |
| resolution | 0.005% F.S. |
| rate | 85 rpm(min) / 18,000 rpm(max) |
| Sampling Rates | 1ms to seconds each sensor can have different sampling rate (each record have his own time stamp) |
| Internal Memory | 8 Gbytes |
| Current Consumption | 30mA @ 18 VDC |
| Type of Cable | 7/32”, 5/16”, 7/16”, H2S and Open hole cables |
| Surface Data Acquisition System | Warrior System (version 8) |
